제 품 정 보

FEATURE

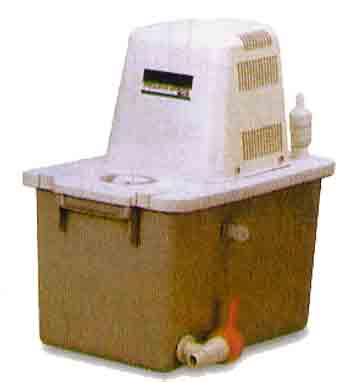

The WJ Series is a portable unit with a built-in watertank having pumping performance as compared with a conventional water jet filter pump. It is suited to reduce the pressure of rotary evaporator or other vaccum apparatuses . theWJ-15 with a cock and the EJ-20 with a flexible hose for feeding and drain are available.
SPECIFICATIONS
Model No.
15-WJ-15
15-WJ-20
Performance
12 to 15l/min X 2PCS
Ulrimate
vacuum
Water temp
10C___________20C__________30C
9.2___________17.5___________31.8
Torr
9.2
Motor
100W/150W
Aspirator
Metal water jet filter pump
Water tank
Polypropylene. 10L
suction port
Quick connection. Ø11.5mmX2
Water feeding/drain
Drain cock(Ø17mm)
Overflow(Ø17mm)
Flexible hose(Ø12mm)
Overflow(Ø17mm)
Power supply
AC220V. 50/60Hz. 1.0/1.3A
Overall dimensions
360(W)X255(d)X390(H)mm
Weight
approx. 6kg
